Description
Tractor-operated Advance Seed Drill

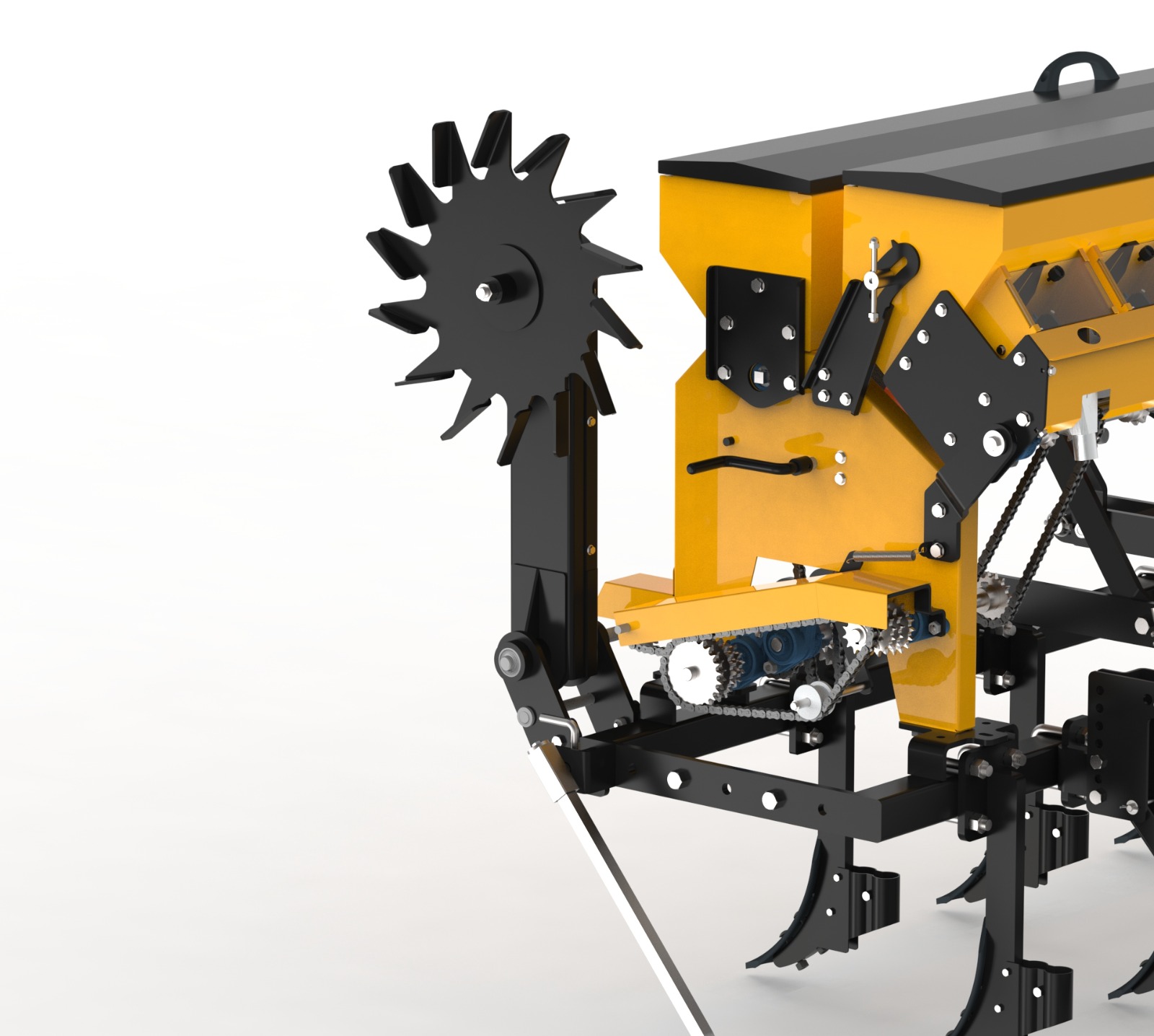

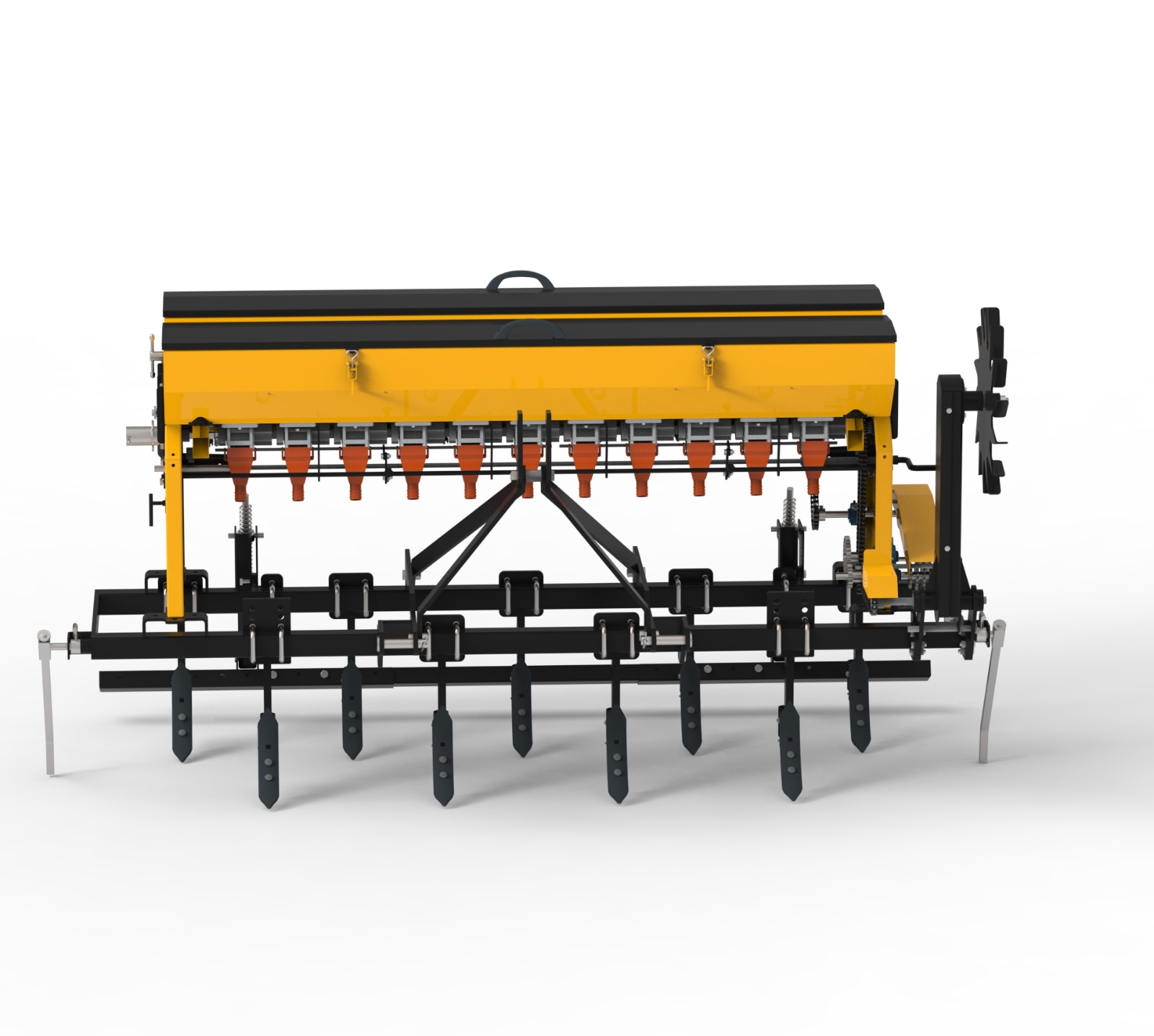

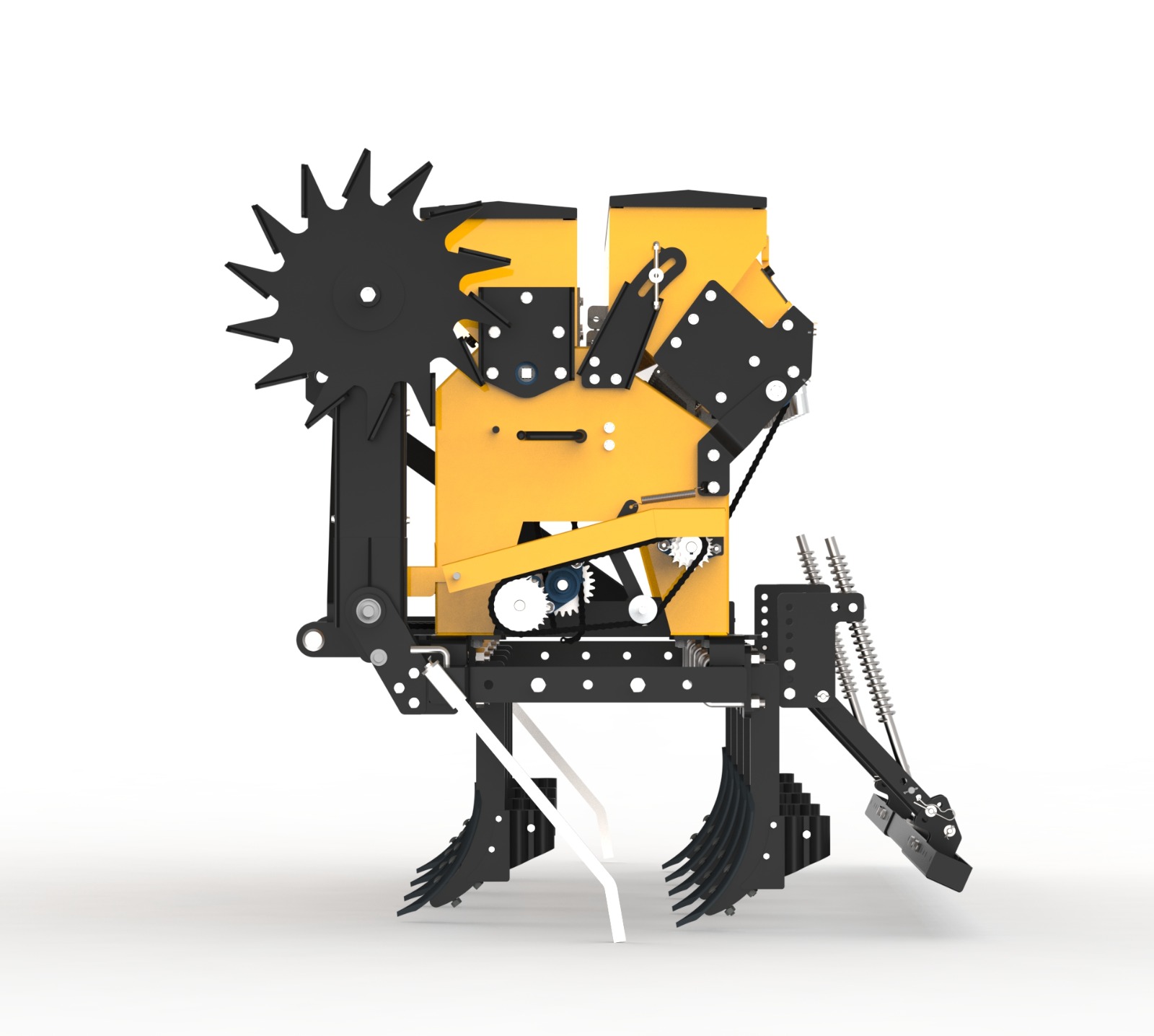

The Modiant Advance Seed Drill MS-ATS-0911 is a 9-row tractor-operated machine for sowing seeds at the required depth and spacing. It includes separate seed and fertilizer boxes, inclined seed plate metering, and a ground-wheel-driven chain and sprocket system.
Key features
- 9 sowing rows with adjustable row spacing.
- Interchangeable inclined seed plates to suit seed type and size.
- Adjustable fertilizer metering.
- Seed-to-seed spacing adjustment through sprocket combinations.
- Three-point tractor linkage mounting.

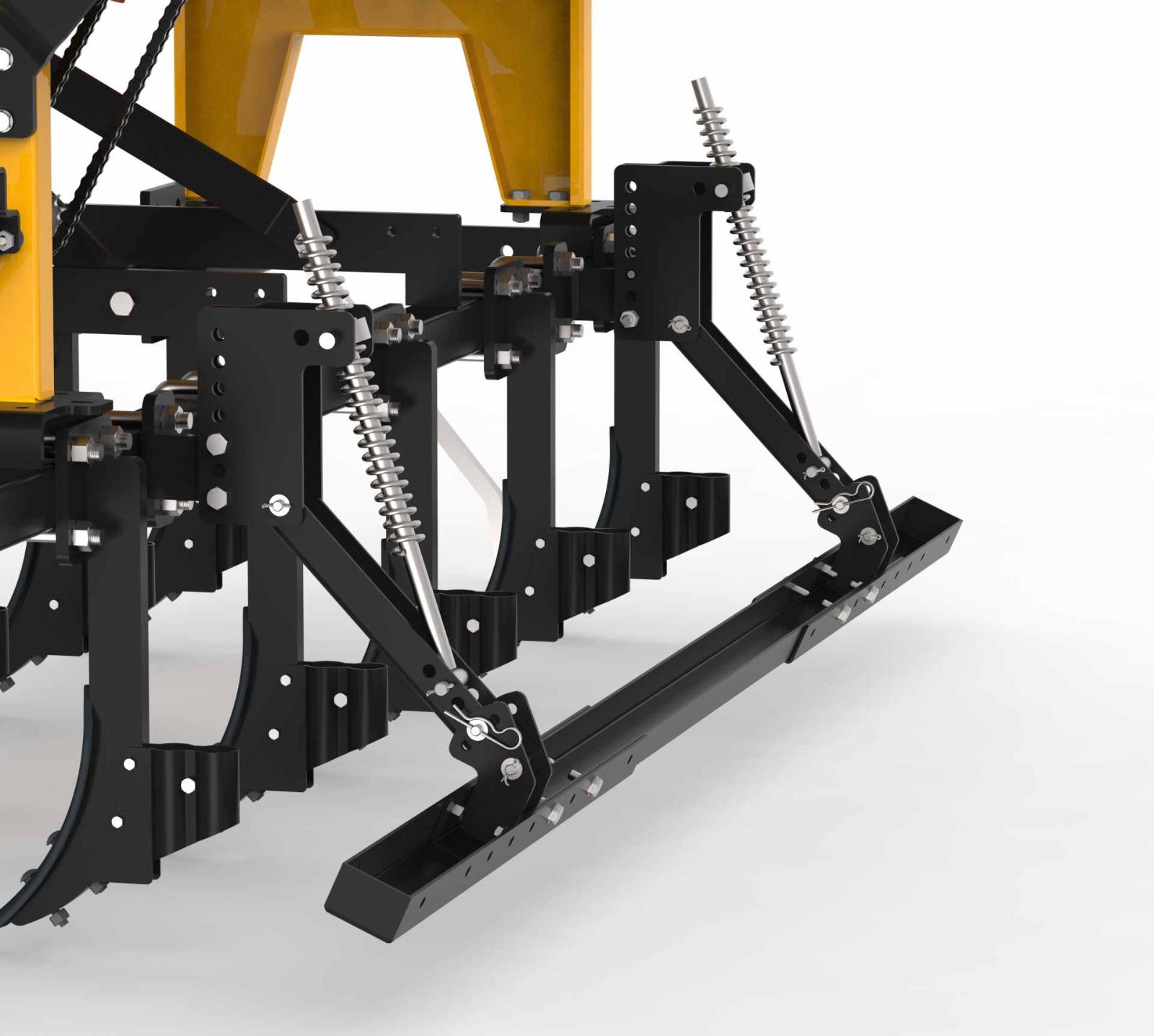

- Furrow openers and seed covering arrangement.
Technical specifications
| Model | MS-ATS-0911 |
|---|---|
| Machine type | Tractor operated |
| Number of rows | 9 |
| Row spacing | Adjustable |
| Working width | 90 inches |
| Seed metering | Inclined seed plates |
| Hopper capacity | Approximately 50 kg |
| Machine weight | Approximately 350 kg |
| Recommended tractor power | 35 HP and above |
| Operating speed | 3–5 km/h |
Setup and operation
Attach using the tractor three-point linkage and adjust the top link to keep the machine horizontal. Select the appropriate seed plate, set fertilizer delivery and seed spacing, and calibrate the seed rate before field use. Prepare the field and adjust sowing depth as required.
Maintenance
- Daily: Clean the machine and lubricate the chain.
- Every 25 hours: Check nuts and bolts.
- Every 50 hours: Grease bearings.
- Every 100 hours: Inspect the metering mechanism.
Stop the tractor before maintenance. Keep hands clear of moving chains and rotating parts, and keep children and untrained persons away.
